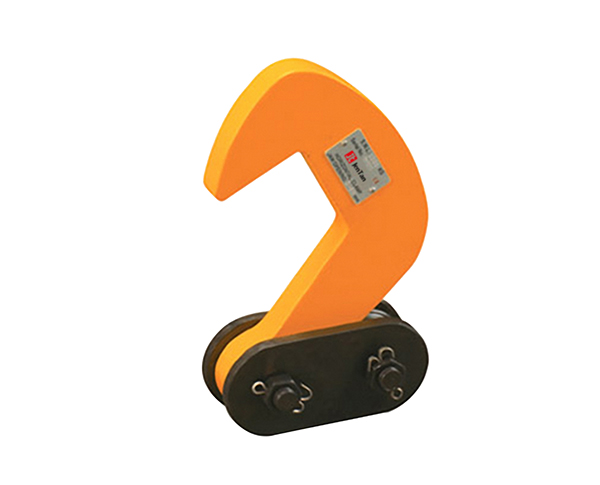

LC-H5橫吊
1.Suitable for lifting and transport of multi steel plates.2.Manufacturd from high quality carbon steel.
3.Avoid snatch or shock loading.Lifting beam must be in use.
4.The roller at the head of the hook will not damage the sling rope.
5.The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations four clamps must at least always be used.
6.Automatic unloading
| 參數(shù)表 LC-H5 TYPE LIFTING CLAMP | |||
| 型號 | 額定載荷 | 鉗口寬度 | 凈重 |
| Model | Rated Capacity(t) | Jaw opening(mm) | N.W(Kg) |
| 1T | 1.0 | 0-50 | 3 |
| 2T | 2.0 | 0-60 | 5 |
| 3.2T | 3.2 | 0-90 | 12 |
| 5T | 5.0 | 0-120 | 17 |
| 8T | 8.0 | 0-130 | 25 |
| 10T | 10.0 | 0-150 | 30 |
| 20T | 20.0 | 0-160/0-240 | |
